CodeGraph Cuts AI Coding Token Costs by 52% with Frontend-Aware Knowledge Graphs
Agentic Search
Coding agents like Claude Code, Codex, Cursor, OpenCode, and Trae can implement features, refactor code, and fix bugs for our projects on one condition: they need to understand your code repository.

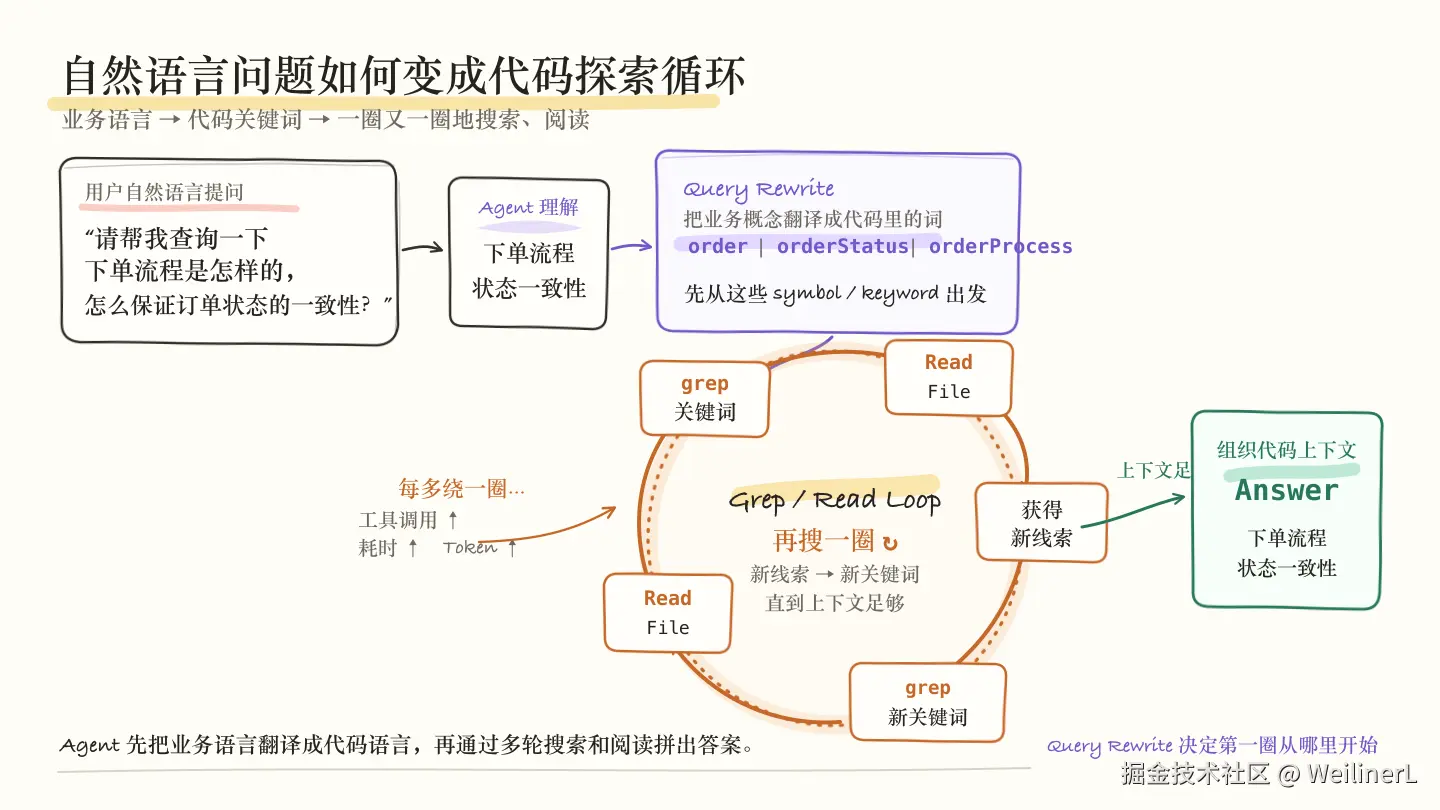

Typically, a user inputs a natural language question: "Please help me look up the order placement process and how to ensure order status consistency." At this point, the agent first needs to understand what the order placement process is. It will query rewrite this question into corresponding keywords, such as: order|orderStatus|orderProcess, and then use these keywords to find the relevant code snippets:
- grep keywords -> read file -> grep keywords -> read file -> ...(loop) -> answer
Through multiple rounds of querying, fragmented information is organized into logical context.
However, this query method has the following problems:
- The AI needs to continuously grep and expand the original repository code to get the desired result, which consumes significant time and tokens.
- Plain-text code snippets are fragmented and difficult to correlate, such as function call chains or the association between pages and components. The AI tends to focus on local information and ignore potential content unrelated to the keywords.
- How is business semantics linked to actual code? Business is defined by the business team, while code is the specific implementation by developers. The same function might have different code implementations, and conversely, the same function name might carry different functionalities.
CodeGraph
CodeGraph is a method that converts a code repository into a searchable, traversable code knowledge graph (composed of entities and relationships) through static analysis (Tree-sitter, etc.). It captures context such as files, functions, methods, classes, call relationships, dependencies, field reads/writes, and state flows, and provides relevant APIs for callers to retrieve. This allows AI to move beyond keyword search and truly understand the relationships between code.
Here are some well-known code knowledge graph solutions:
| Project | One-liner Positioning | Core Technology | Graph Design | How to Recall Relevant Code | Update Method | Most Outstanding Feature |
|---|---|---|---|---|---|---|
| GitNexus | A full-featured code knowledge graph and Graph RAG platform | Tree-sitter + LadybugDB; supports browser WASM | Files, functions, classes, call relationships, with pre-computed functional communities and execution flows | BM25 keyword + vector semantic search + RRF fusion, then combined with call chains and functional communities | Re-execute analysis; incremental capability is still evolving | Relatively complete retrieval, impact analysis, flow analysis, and visualization |
| code-review-graph | Oriented towards code review and change risk analysis | Tree-sitter + SQLite, optional vector model | Functions, classes, imports, calls, inheritance, test relationships, and identifies code communities and execution flows | Full-text search + optional semantic vectors + graph traversal, focusing on finding the scope of change impact | Watch, Git Hook, and incremental updates | Best suited for PR reviews, test gaps, and risk scoring |
| codebase-memory-mcp | A code graph backend pursuing extreme performance and language coverage | Tree-sitter + Hybrid LSP + SQLite, static binary | Besides code symbols, also models HTTP routes, infrastructure resources, and cross-service relationships | Name/regex search, graph traversal, Cypher queries, and code search | Background auto-sync, can also share compressed graph database | Wide language coverage, fast queries, few dependencies |
| CodeGraph | Provides AI coding agents with always-up-to-date, precise code context | Rust native parsing kernel + Tree-sitter + SQLite/FTS5 | Nodes are files and code symbols; edges are calls, imports, inheritance, implementation, and framework routes | First uses full-text search to locate entry points, then expands along call relationships; returns source code, call paths, and impact scope at once | Watches file changes, only syncs changed parts | Runs locally, auto-refreshes, and converges complex queries into a single explore tool |
| Graphify | Unifies code, docs, PDFs, configs, etc., into a browsable knowledge graph | Tree-sitter; LLM can be used for non-code content extraction | Concept-level graph; each edge labeled as "source-extracted" or "inferred"; uses Leiden for community partitioning | Does not use a vector library, mainly recalls via subgraphs, neighbors, and shortest paths | Supports manual updates, Watch, and Git Hook | Richest data sources, graph relationships are explainable, easy to visualize and share within teams |
After comparing various industry solutions, we ultimately adopted the CodeGraph solution. It includes complete benchmark tests, has relatively good productization, and aligns with our early exploration based on the theory of LocAgent at the end of 2025 (we had already implemented a version of CodeGraph based on this theory before). It is also a relatively pure, purely engineering-side foundational capability.

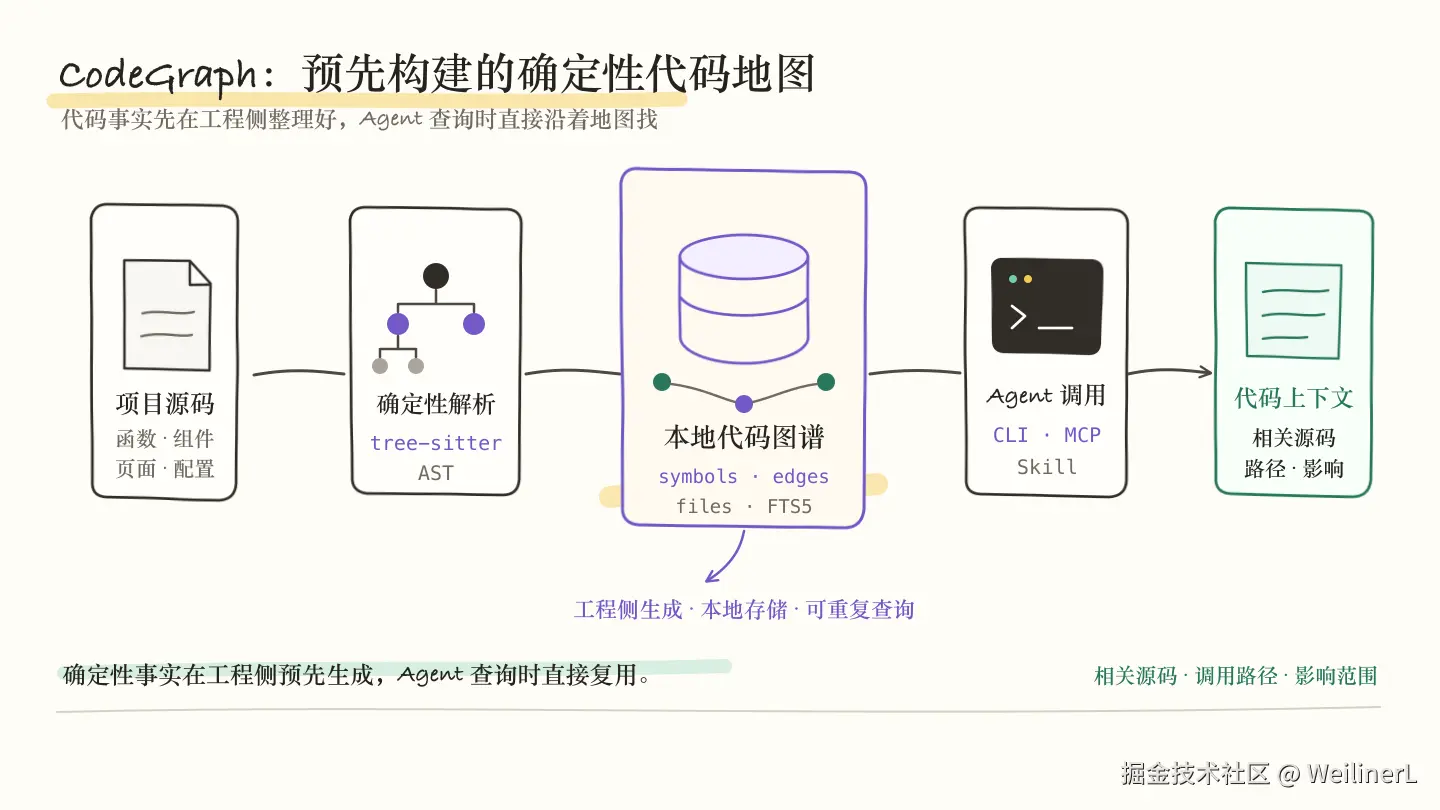

Its core process can be summarized as: FTS is responsible for precise symbol and keyword positioning, and CodeGraph is responsible for expanding context along call and reference relationships. When combined, the recall results are explainable and highly deterministic.
- Parse code → Build symbol relationship graph → Auto incremental sync → Return precise context to the Agent at once
Business Practice
To enhance frontend semantics, we established standards for the CodeGraph graph: the design of entities and edges.
- Entities are the basic units for building the graph, such as files, directories, and functions.
- Edges describe the relationships between entities, such as contains, calls, and inherits.
Entity Types
General Entities
General entities are used to describe the basic structure of the codebase and language-level symbolic relationships, applicable across different languages.
| Entity | Meaning | Description |
|---|---|---|
| file | File | The carrier unit for all code, configuration, and resources |
| directory | Directory | The basic structural entity of the repository |
| function | Function or inline callback | A callable logic unit at the language level |
| method | Method | A method within a class, object, or framework object |
| class | Class | The type and inheritance structure at the language level |
| import | Import definition | The entry point for module dependencies and symbol references |
| export | Export definition | The symbols exposed by a module to the outside world |
Framework Entities (Vue/Mpx/React)
Framework entities describe the semantics generated by frontend applications through frameworks or runtime conventions like Vue, Mpx, and React (frontend-specific semantics). These entities are often not fully expressible by a pure language AST and require a combination of framework parsers, configuration parsing, and convention recognition.
| Entity | Meaning | Description |
|---|---|---|
| app | Application entry point | Application startup, mounting, and global configuration entry point |
| page | Page entry point | Frontend business page or route page |
| component | UI component | Vue/Mpx component or React component |
| reactive_state | Local reactive state, e.g., prop, data, ref, useState, computed | Internal state of a component or page |
| global_state | Global state, e.g., store, model, global atom | State shared across pages and components |
| event_channel | Event channel, e.g., emit/on, event bus | Component events, page events, or global event communication |
Relationship Types
General Edges
General edges describe structural, dependency, and call relationships that hold true across technology stacks.
| Edge | Meaning | Description |
|---|---|---|
| contains | Structural containment relationship | Hierarchical relationships of directories, files, classes, methods, and functions |
| invokes | Ordinary call relationship | Calls between functions, methods, and callbacks |
| imports | Module dependency relationship | Import dependencies between files or modules |
| extends | Inheritance relationship | A subclass inheriting from a parent class |
| resolves_to | Configuration or symbol resolves to a target entity, e.g., a route resolves to a page | Resolution results for import/export, routes, configuration, etc. |
| depends_on | General dependency relationship, typically used for weaker or less specifically classifiable dependencies | A fallback dependency edge, suitable for relationships with lower resolution confidence |
Framework Edges (Vue/Mpx/React)
Framework edges describe UI composition, page navigation, data reads/writes, event side effects, service calls, and platform capabilities specific to frontend frameworks.
| Edge | Meaning | Description |
|---|---|---|
| navigates_to | Navigation relationship, e.g., page jumps, route jumps, parameter passing | Jump links between pages and routes |
| reads_data | Reads local or global state | Pages, components, or functions reading reactive_state or global_state |
| writes_data | Writes local or global state | Pages, components, or functions writing reactive_state or global_state |
| provides_to | Provider provides dependency to consumer | Framework dependency injection or context provision relationship |
| injects_from | Consumer injects dependency from provider | Framework dependency injection or context consumption relationship |

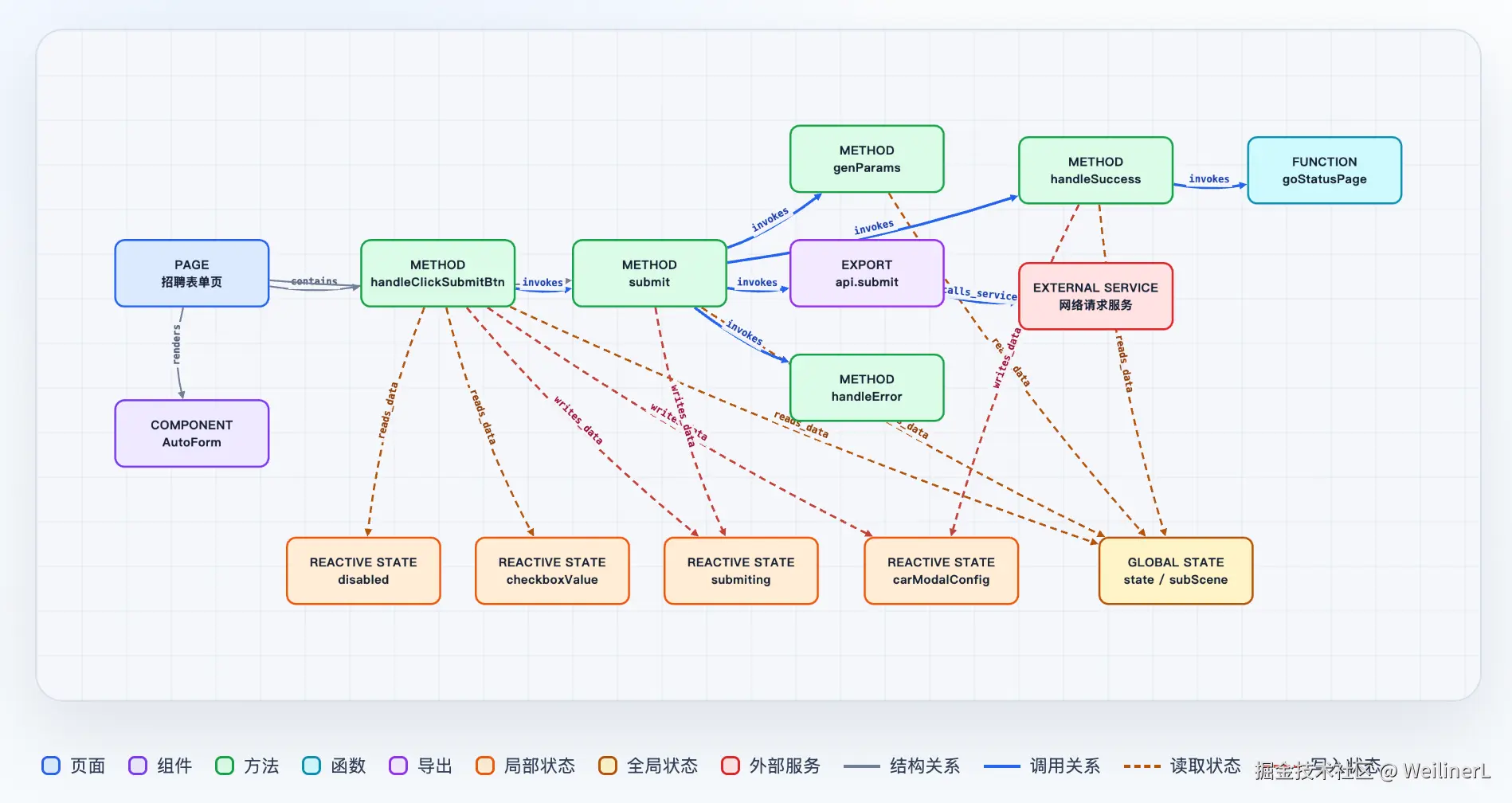

Based on the structured expression of entities and edges, we ultimately obtain a complete relationship graph describing the structure and semantics of the code repository. It can clearly express the relationships between code with different responsibilities.
View Layering
To better understand the repository, we created a view abstraction: you can focus on a specific area by layering the views. This layering is designed based on frontend frameworks like Vue/Mpx/React and is mainly divided into four layers:
The following examples are generated based on the open-source project vue-admin-better:

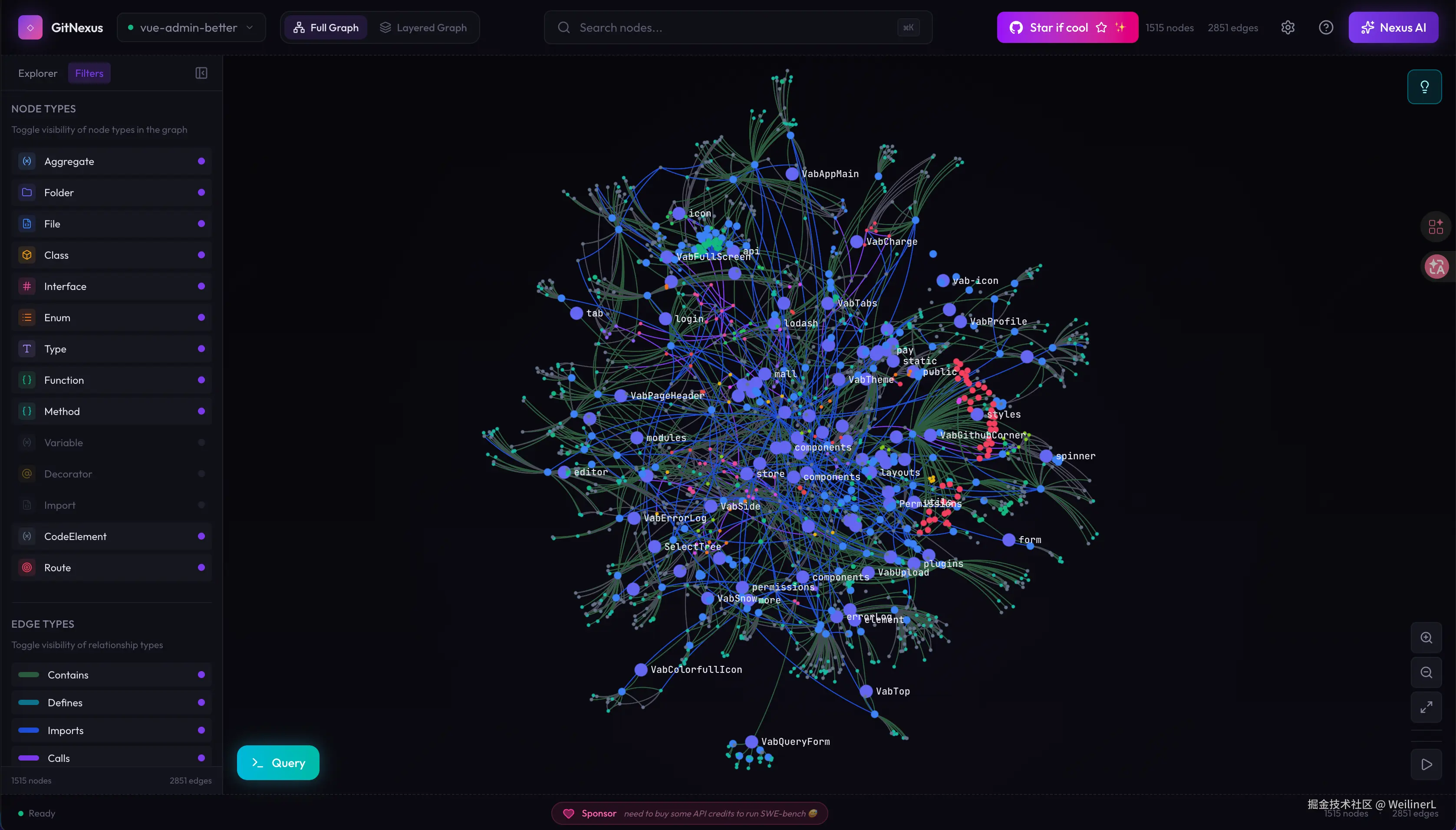

- L1: BaseGraph layer, the most basic, bottom-level, full-entity graph based on the frontend project, as shown below (rendered via GitNexus)

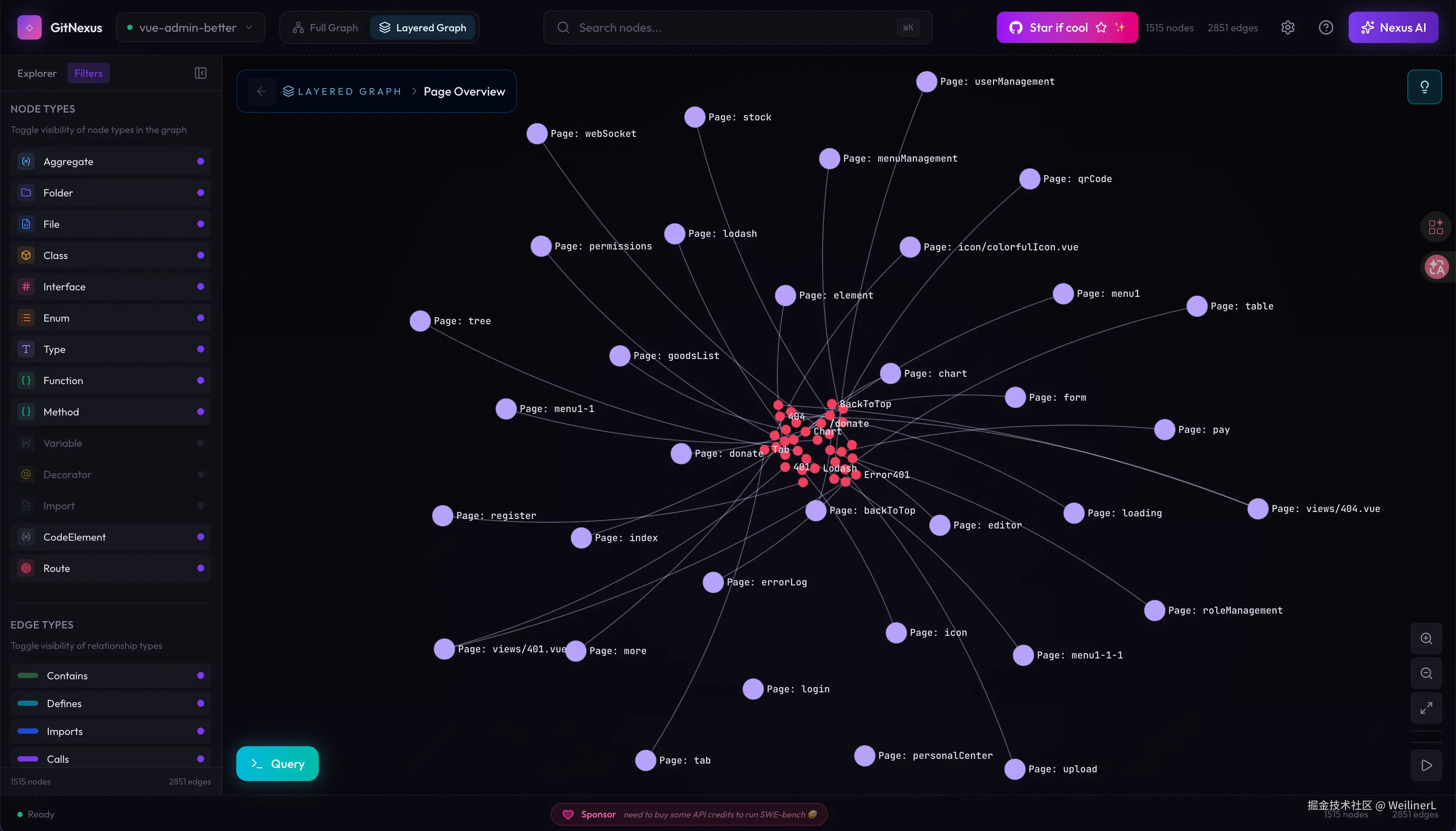

- L2: PageGraph layer, only displays page semantic units, describing how many Page entities exist in the entire CodeGraph, what routing relationships exist between these entities, and which general entities can navigate to them (i.e., includes the routing graph)

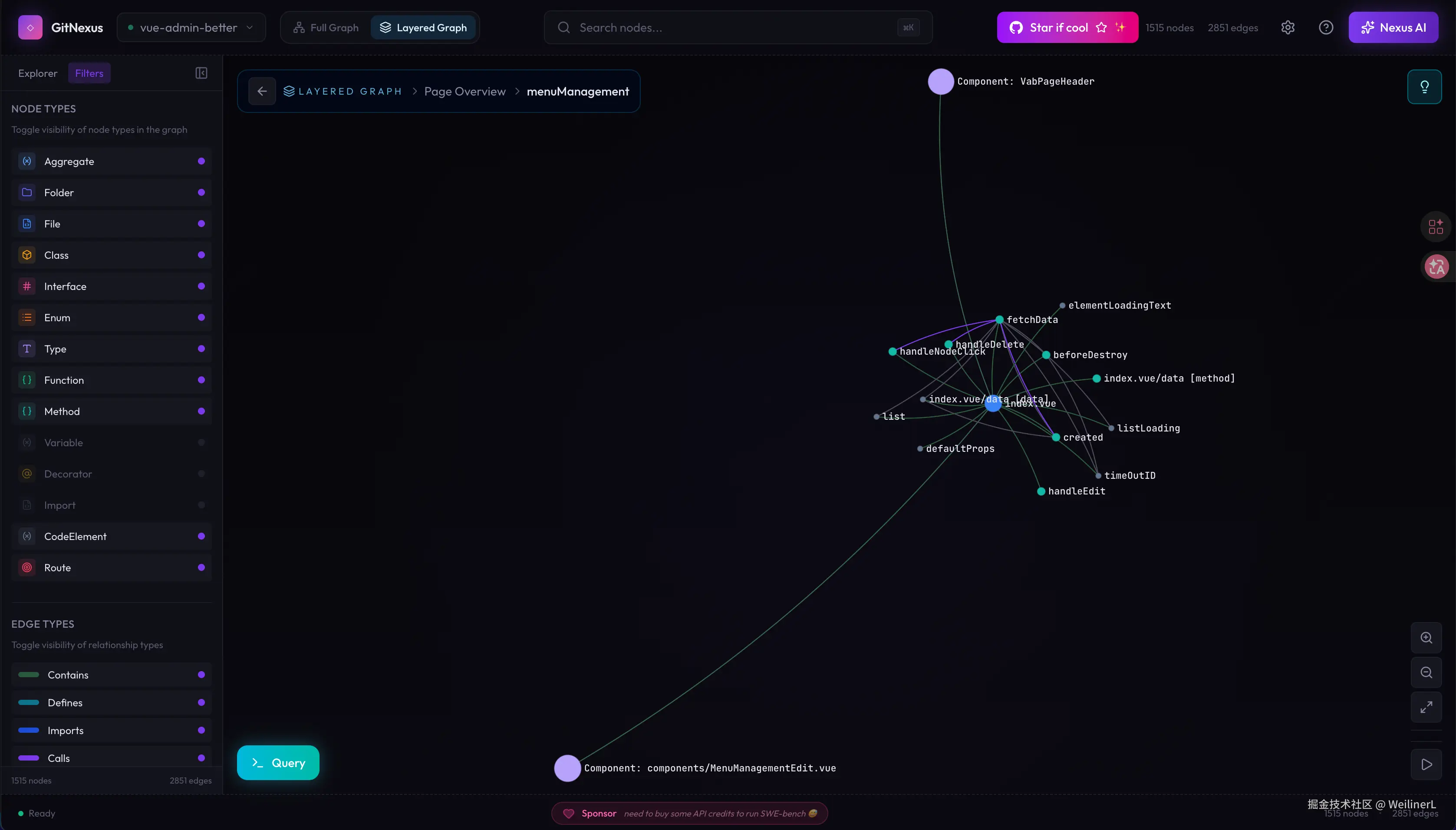

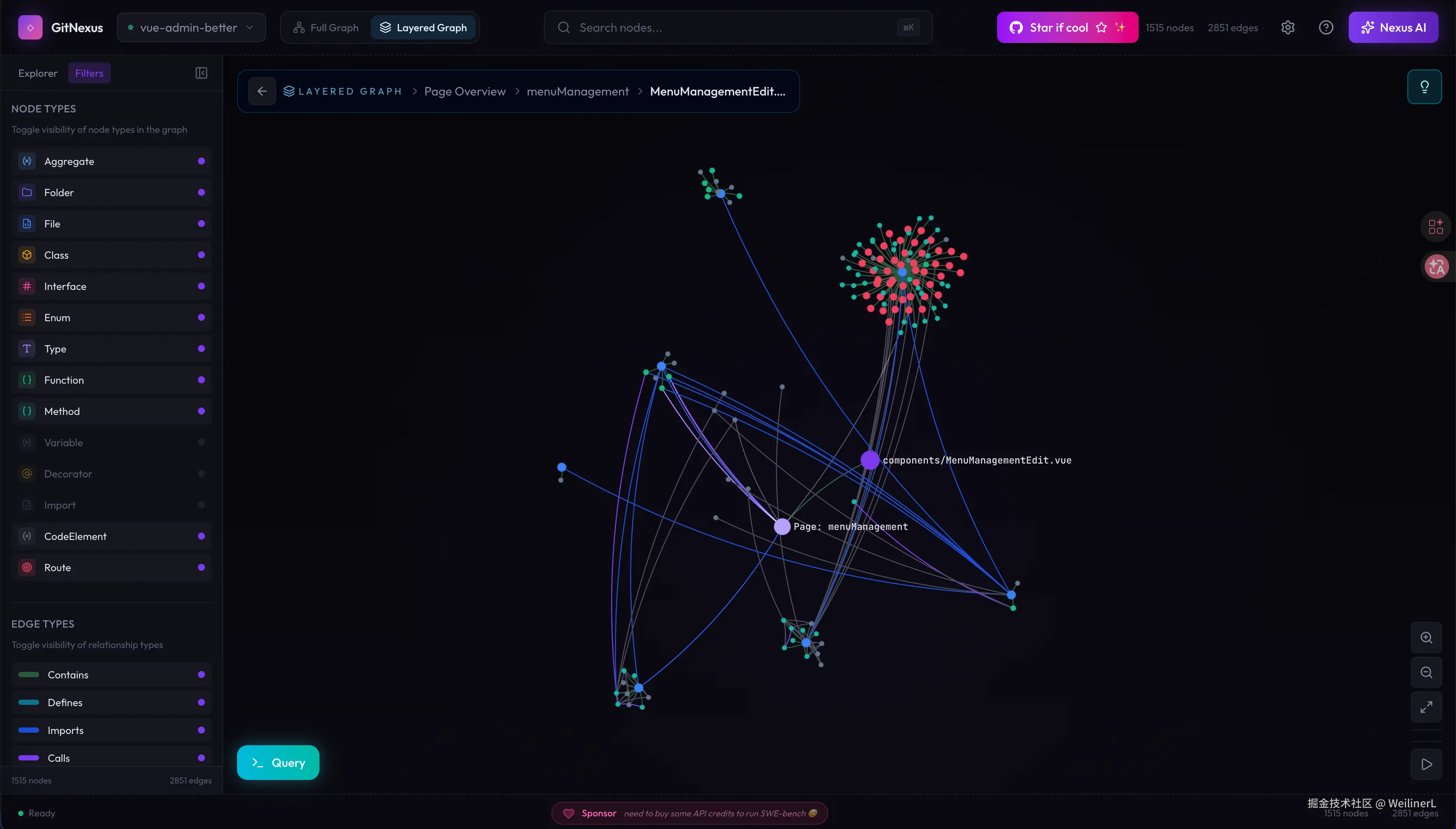

- L3: Page layer, only displays the component semantic units under a corresponding page. A page can contain multiple components, and the page itself also has some additional logic, such as its own methods, data, props, etc.

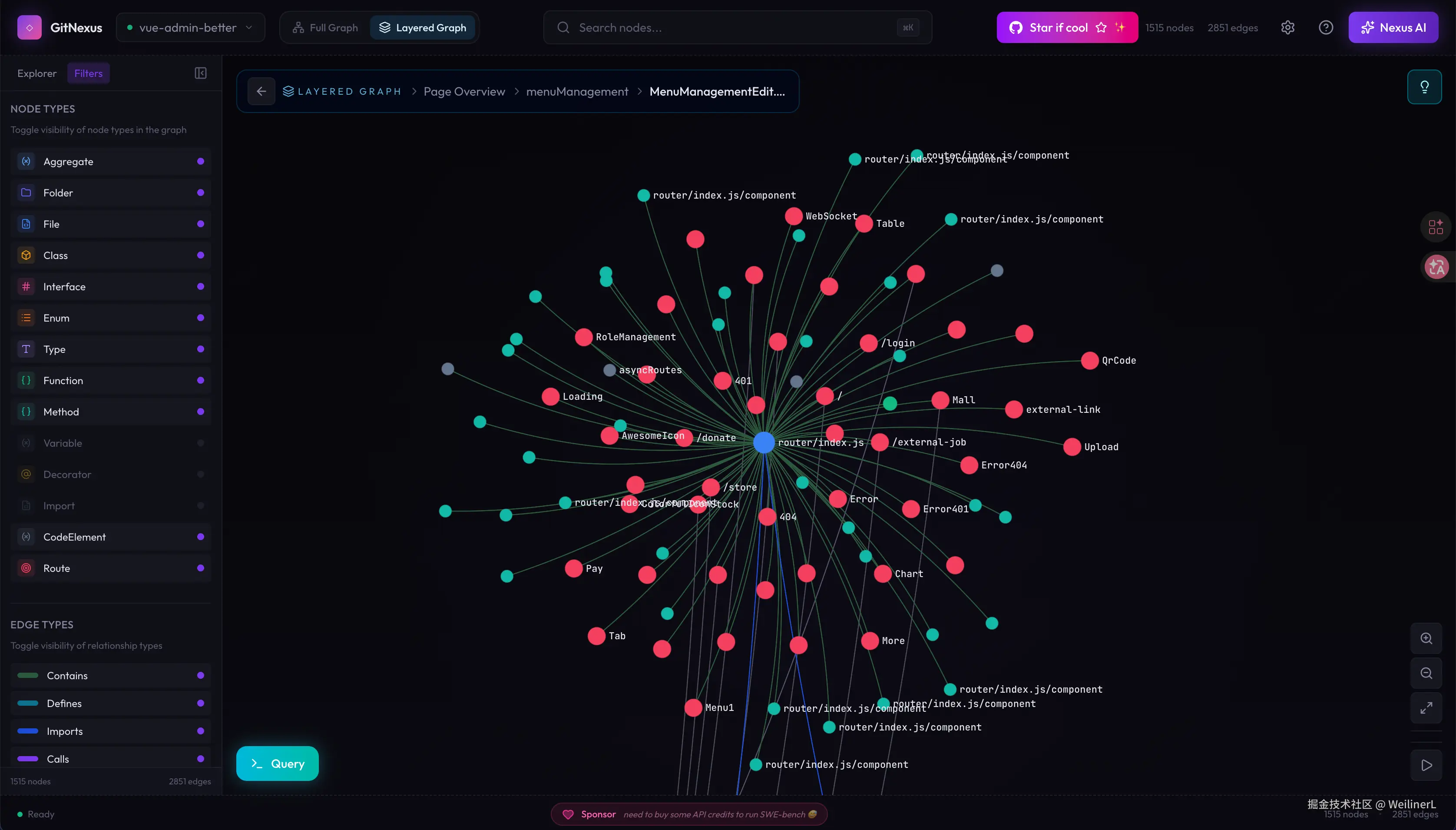

- L4: Component layer, the complete subgraph expanded based on a specific component (Component), containing the real relationships of functions, methods, Hooks, Store access, side effects, data flow, and state flow within that component
Covered Scenarios
General Scenarios (Cross-language)
| Scenario | Description |
|---|---|
| Structure Navigation | Browse the hierarchy of directories, files, classes, methods, and functions |
| Call Chain Analysis | Trace the call paths between functions and methods |
| Dependency Analysis | Analyze file-level import relationships and module dependencies |
| Symbol Location | Locate code positions by file name, function name, method name, or class name |
Frontend Scenarios (Vue/Mpx/React)
Frontend Context Recall: Find relevant pages, components, states, navigation chains, and API links for AI Coding.
| Scenario | Description |
|---|---|
| Page Jump Analysis | Trace page jumps and parameter passing |
| Component Usage Analysis | Analyze the rendering relationships between pages and components |
| Data Flow Analysis | Analyze the reading, writing, and side effects of local and global state |
Applied to the open-source CodeGraph, adapted for internal tech projects.
Benchmark
To verify the actual benefits of frontend semantic enhancement, we selected 5 projects—Ride Code, Passenger Mini-Program, tianji-sale-car, VS Code, and Excalidraw—with 17 real code understanding questions for testing. Each case was executed 4 times as an Agent task (claude code + deepseek-v4-flash), and the median of the four rounds was used for statistics.
The test included three groups:
- Without: CodeGraph not used.
- Main: Using the GitHub main branch version
codegraph 1.0.1. - CodeGraph: Using the candidate version
codegraph 1.0.3with frontend semantic enhancements like Page, Component, and Service added (internal network version).
The test model was deepseek-v4-flash.
| Metric | Without | Main | CodeGraph | CodeGraph vs Main | CodeGraph vs Without |
|---|---|---|---|---|---|
| Total Time | 2119.6s | 1672.4s | 1430.6s | -14.5% | -32.5% |
| Total Cost | ¥22.735 | ¥16.302 | ¥13.097 | -19.7% | -42.4% |
| Total Tokens | 57.45M | 33.18M | 27.39M | -17.4% | -52.3% |
| Tool Calls | 764.5 | 320.0 | 321.5 | +0.5% | -57.9% |
See the specific data below:

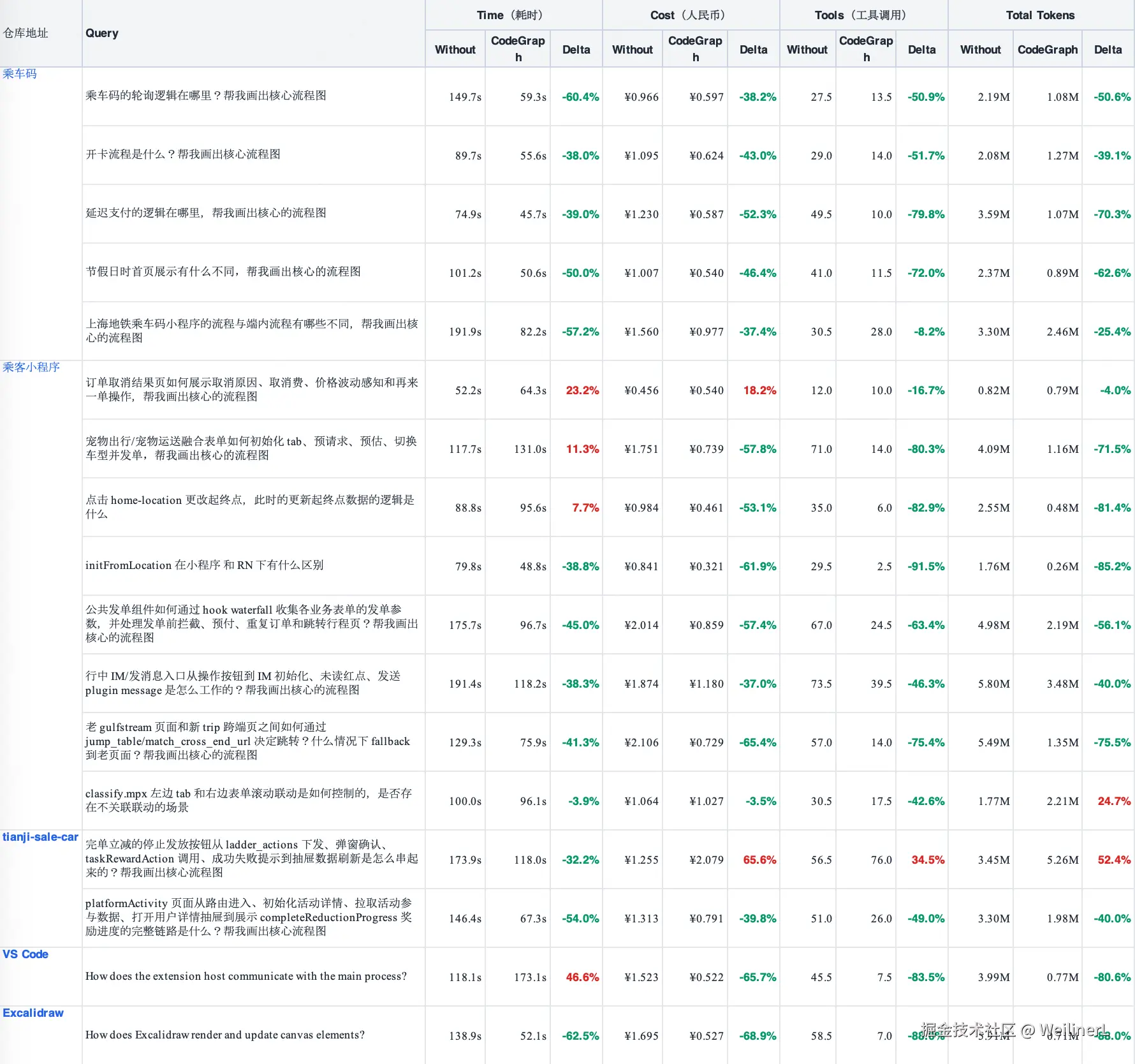

Improved CodeGraph VS without

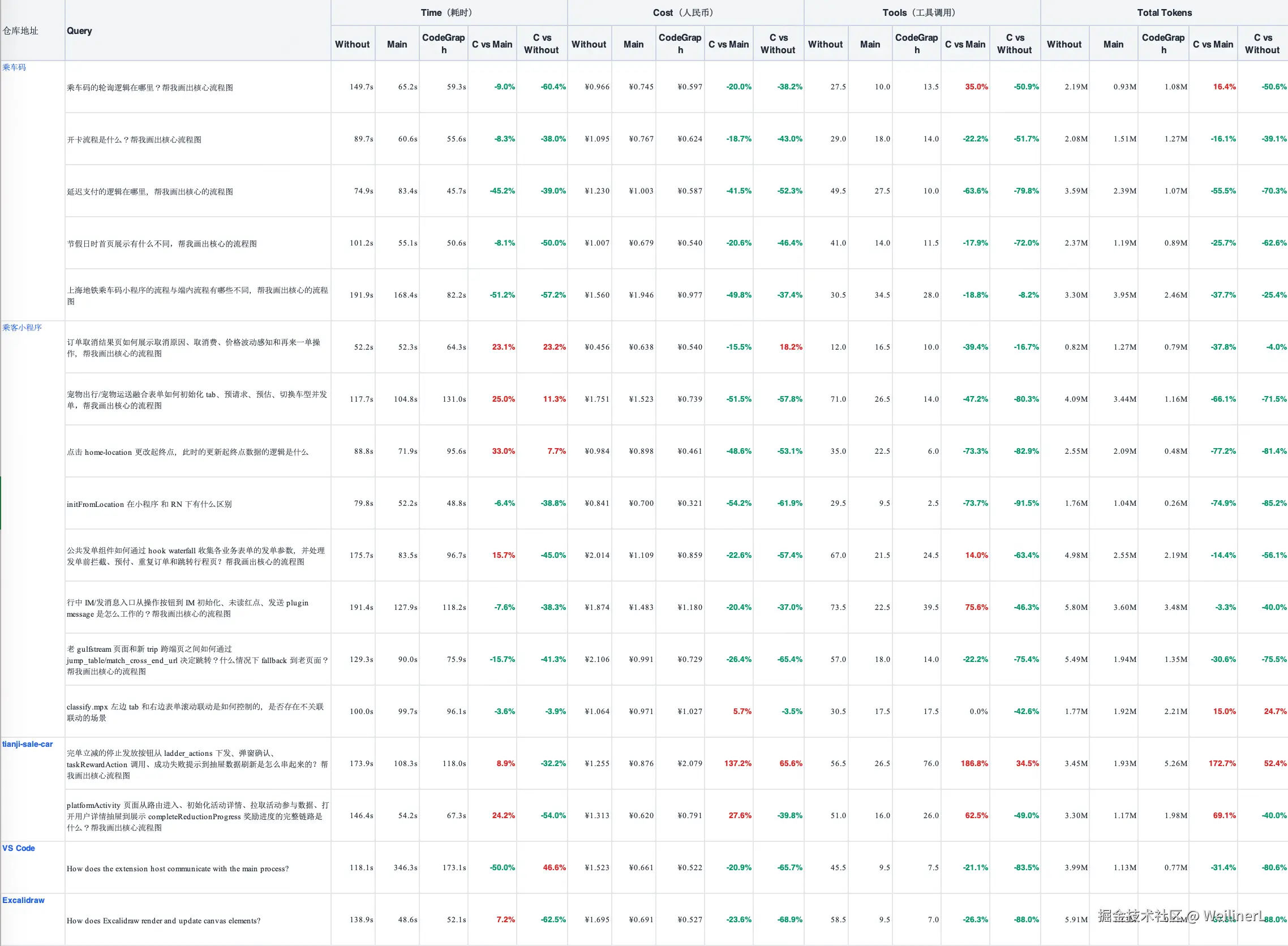

Improved CodeGraph VS Original CodeGraph VS without
Overall, the frontend semantic enhancement achieved clear positive gains. Compared to Main (the original upstream), CodeGraph, with a basically flat number of tool calls, reduced total time by 14.5%, cost by 19.7%, and token consumption by 17.4%. This indicates the benefit is not simply from reducing tool calls, but that the semantic graph helps the Agent locate the relationships between pages, components, states, and services faster, reducing ineffective code reading and context expansion.
Compared to not using CodeGraph at all, the semantically enhanced version reduced time by 32.5%, cost by 42.4%, token consumption by 52.3%, and tool calls by 57.9%, demonstrating the significant value of graph recall for Agent code understanding in large code repositories.
Existing Problems
CodeGraph provides the capability to efficiently query and organize code context for AI Agents. It is a deterministic result produced by the engineering side. In the vast majority of scenarios, it is a tool autonomously invoked by the Agent (via CLI commands, MCP, skills, etc.) that does not affect the accuracy of the final output (only affecting time consumption, token consumption, etc.).

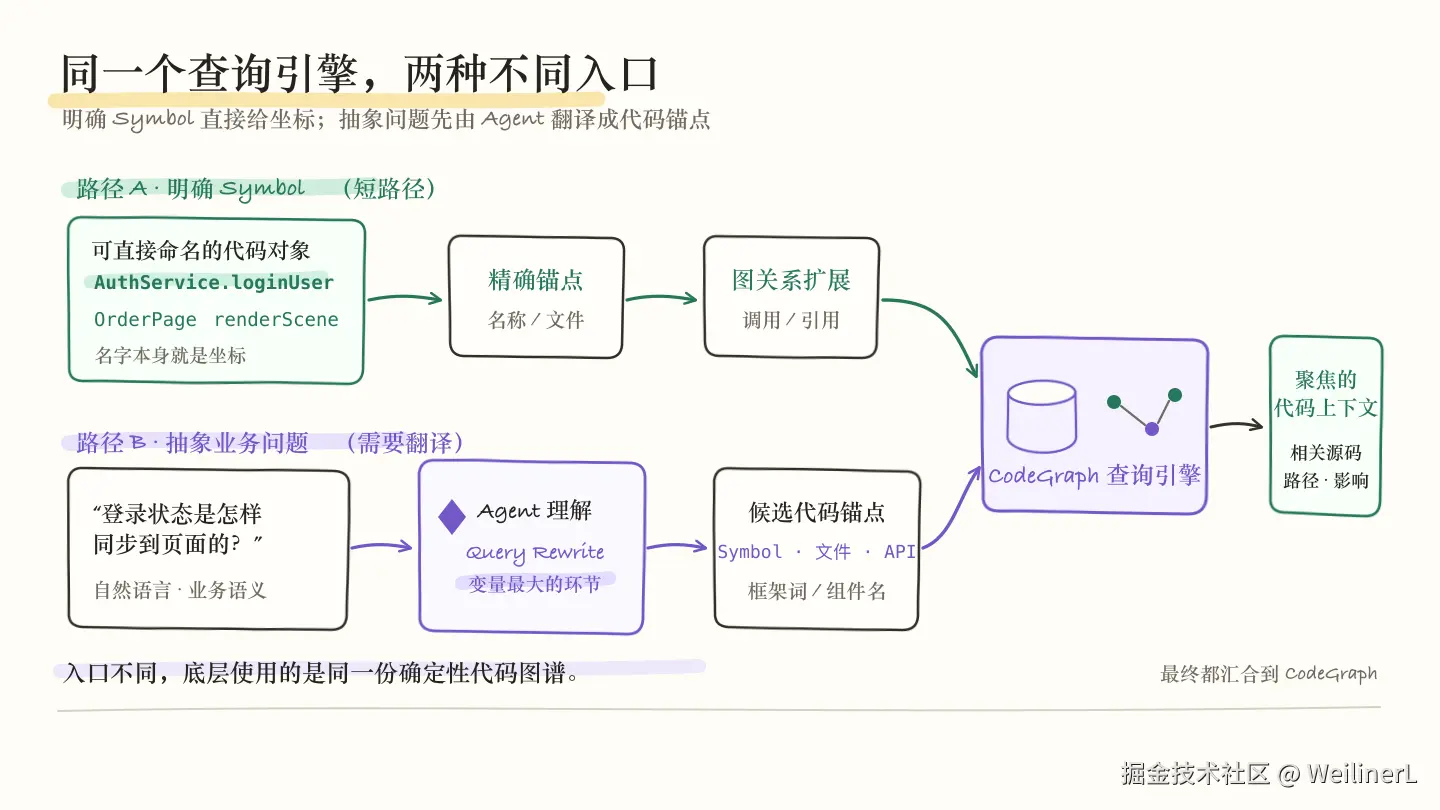

However, in our actual application scenarios, the first step determining query quality is often the user's input query:
- If this query is a relatively certain symbol, such as the name of a function, component, or page, then this type of query is very efficient.

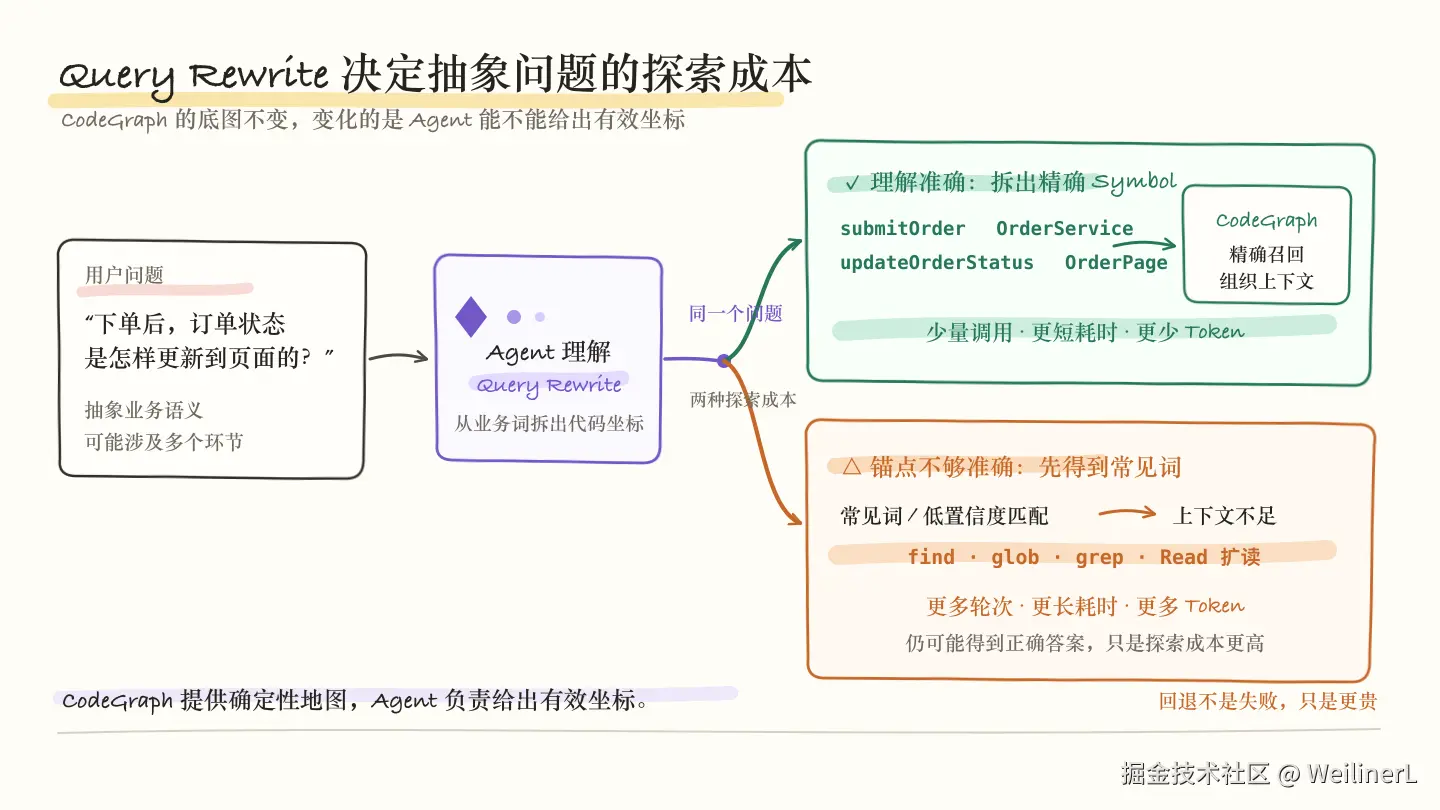

- If this query is a relatively abstract business scenario, such as what the process of a certain function is or involves multiple business semantic scenarios, then it largely depends on the Agent's query rewrite capability. If the Agent has a good understanding of the user's query and the symbols derived from the query split are accurate, then the final organized code context is relatively reliable. Conversely, the Agent may degrade to using tools like find, glob, grep for text expansion because it cannot get precise content, organizing the code context according to the AI's own understanding to get the corresponding result.
Therefore, we have recently been trying to construct a Business Knowledge System. It is a business-domain-oriented knowledge base, a topological structure describing the relationships between various business entities.
Our frontend and backend can generate a knowledge graph about the code repository based on this topological structure, such as some business-explanatory md files about the code repository generated by LLM Wiki. By parsing these files, we obtain a relationship (index) between business semantics and code symbols (such as page, component, function addresses, etc.). Establishing a relationship between business semantics and related code subgraphs enables the same set of relationships to support bidirectional querying:
- Business -> Code (Top-down): Locate frontend code entry points from business semantics like Stage, Page, etc.;
- Code -> Business (Bottom-up): Reverse-lookup business attribution and impact scenarios from symbols, components, files, modules, or APIs.
This is the bidirectional traceability relationship between business semantics and code.
This BKS is cross-repository and cross-technology-stack. For example, the frontend and backend are in the same PRD and have different specific code implementations for the same business scenario. At the abstraction layer, the business semantics are actually the same, while the specific code query (CodeGraph) can be optimized according to the corresponding team's technology stack. In this way, we can not only answer which code corresponds to a certain function, but also conversely answer which business the current code belongs to. Thus, when modifying a function, we can reverse-engineer which business modules will be affected. Theoretically, this can solve all scenarios: Coding, issue location, bugfix, knowledge Q&A, etc.
