Flutter's 3D Rendering Landscape Splits Into Two Camps: Widget-First vs. Game-First

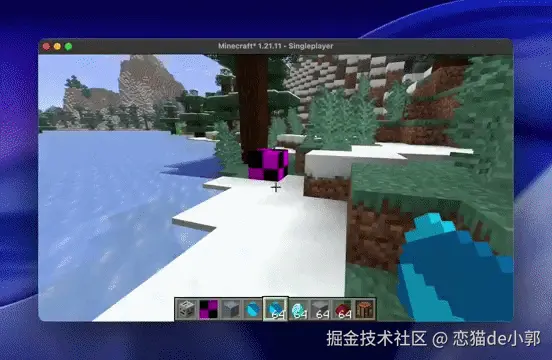

After yesterday's release of "Flutter's New True 3D Implementation: Building a 'Minecraft' with flutter_scene", many people wondered: has Flutter become a game engine? In reality, the main application scenario is not gaming, although it can indeed be used to make 3D games. For example, besides the bdero/flutter_scene mentioned yesterday that can build a 'Minecraft', there is another project called redstone_dart, which implements a Minecraft mod rewritten in Dart with a hot load feature:

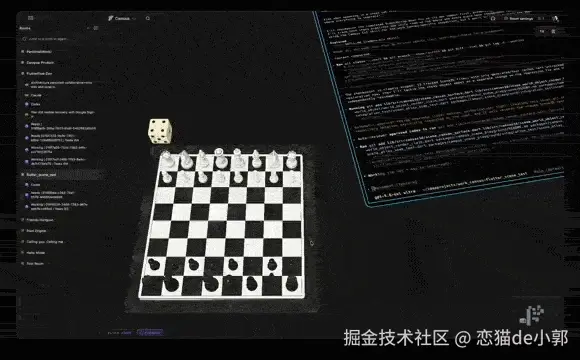

In fact, the current application of 3D effects in Flutter is more like the following. Because it uses the same underlying rendering as Flutter, based on flutter_gpu, it can seamlessly render corresponding 3D models within the same memory:

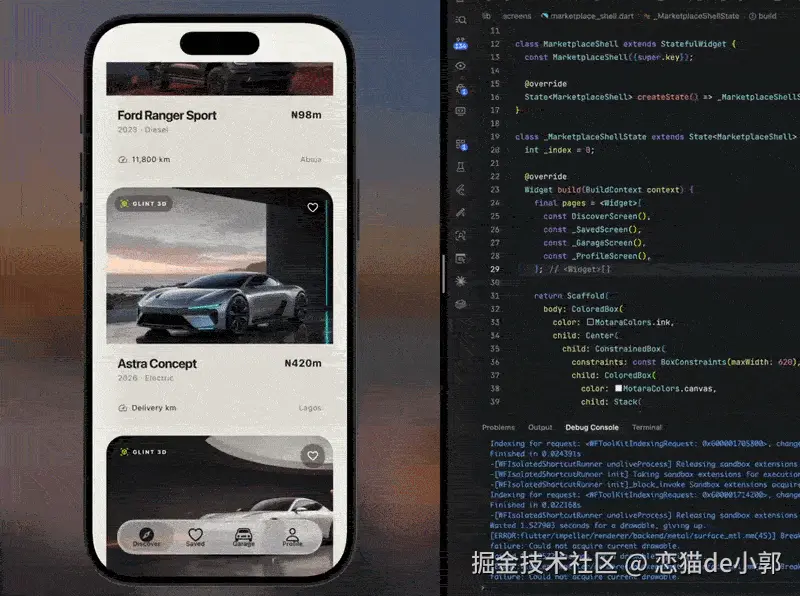

GIF has some flickering because I dropped frames

This is actually the more useful scenario for 3D capabilities in Flutter right now. Of course, the image above uses another Flutter 3D rendering library, kiddo4/glint. Yes, yet another one.

*So although the official team hasn't promoted flutter_gpu themselves, the community has already produced many successful cases. Especially after Impeller finally added support for the Windows desktop, flutter_gpu has essentially completed its support for full-platform app scenarios.

This kiddo4/glint is also a Flutter-first 3D rendering engine, also based on flutter_gpu, rendering glTF/GLB models natively directly within the Widget tree. It's just more direct compared to bdero/flutter_scene:

It manages 3D scenes as ordinary Flutter state (setState to swap materials, Widgets anchored to model surfaces, etc.), while providing a backend-agnostic set of contracts for physics, animation, particles, and audio, combined with an optional native Box3D physics backend and a SoLoud audio backend to form a complete lightweight game engine.

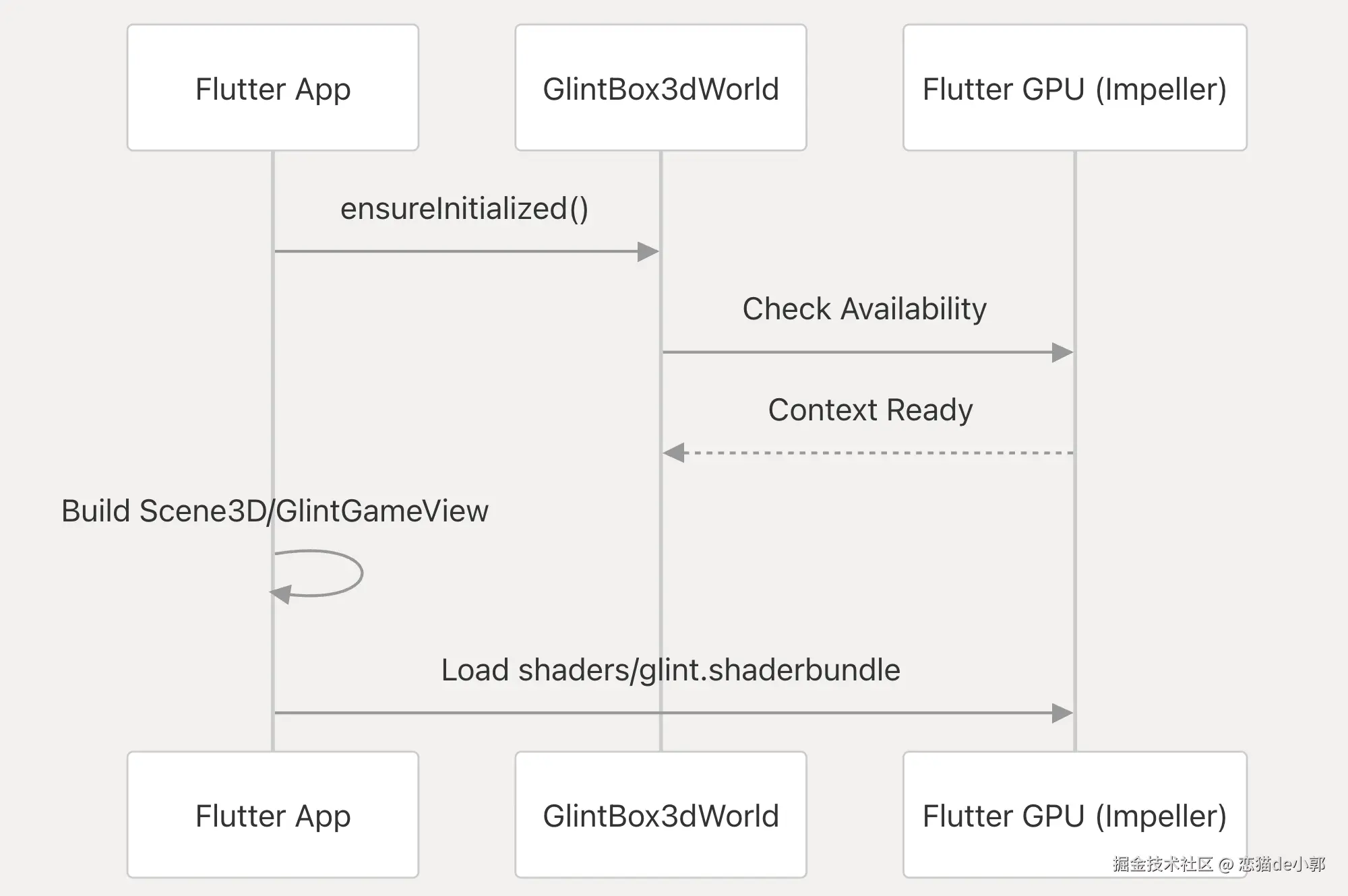

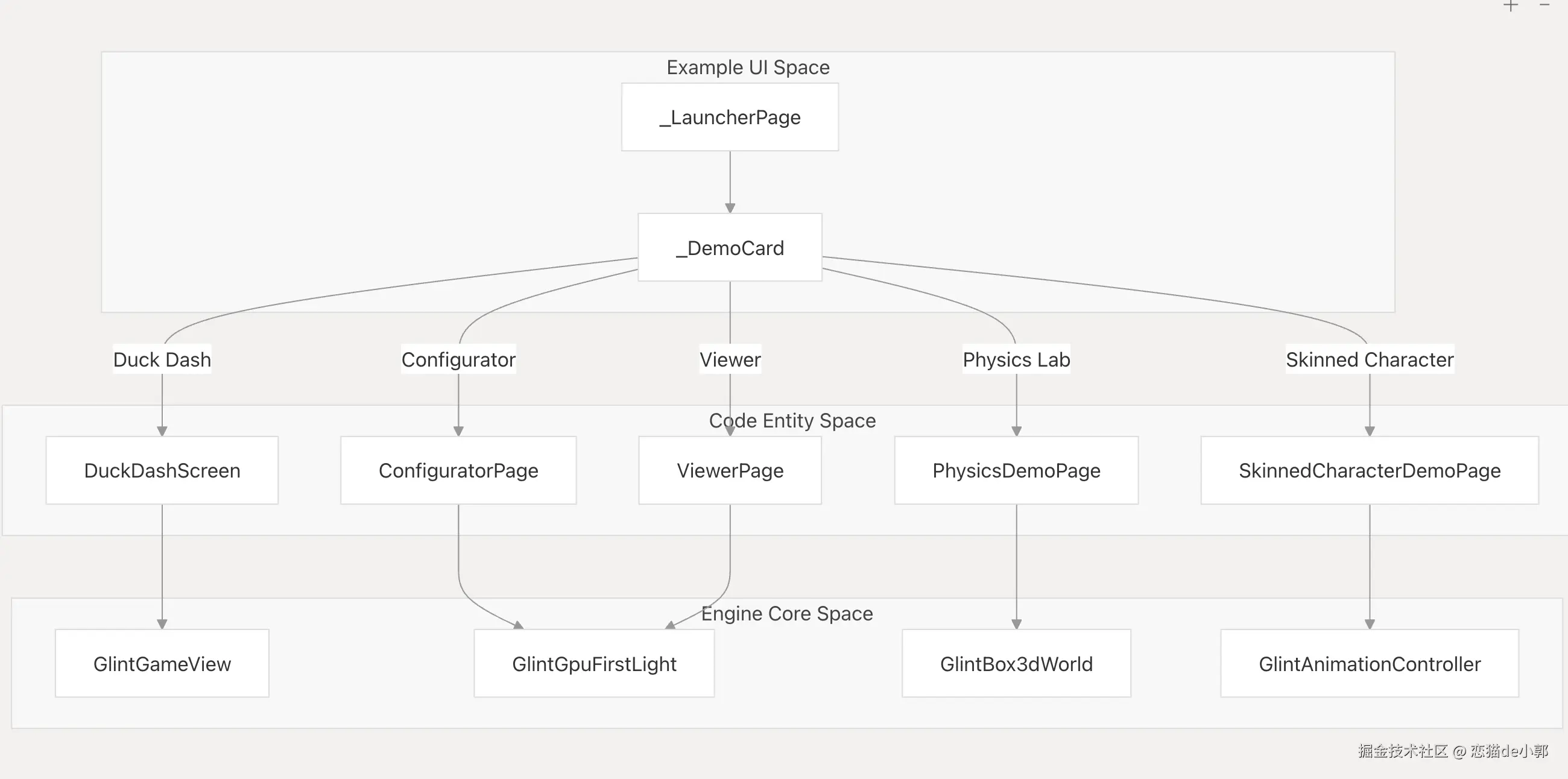

The main implementation of kiddo4/glint's rendering core, GlintGpuFirstLight and GlintGameView (multi-instance game loop), is similar to:

First, asynchronously decode GLB, textures, and HDR environment maps, and upload vertices, indices, and textures all at once as GPU resident resources.
Then, each frame only updates uniforms (MVP matrix, lighting, material factors) and calls RenderPass.draw(), minimizing per-frame overhead.
Directional light shadows are rendered to a color texture using a separate CommandBuffer and RenderPass, with depth manually written into the red channel instead of sampling the native depth attachment. This avoids a native crash issue where two RenderPasses sharing one CommandBuffer currently occurs in Flutter GPU.
IBL ambient light is decoded from .hdr, combined with pre-filtered irradiance/specular maps for PBR shader sampling.
Triangle data on the CPU side is retained for Möller–Trumbore ray intersection, used for click picking and Label3D occlusion judgment.
Physics/animation/particles/audio are all defined as pure Dart backend-agnostic contracts, such as GlintPhysicsWorld. glint_box3d/glint_soloud/glint_basis can serve as pluggable native implementations.
C++ extensions are compiled at build time using Dart 3.x's native assets.
Shaders either use built-in pre-compiled .shaderbundle files, or users write their own JSON Shader Graph, which is compiled offline into an Impeller shader package by shader_graph_build.dart in hook/build.dart.

Overall, kiddo4/glint is indeed much more lightweight than bdero/flutter_scene. After all, bdero/flutter_scene is really aimed at gaming.

So kiddo4/glint is a general-purpose scene graph setup. It can't make games, but it is more lightweight, belonging to the Flutter-widget-first category where scenes can be declared as Flutter state.

bdero/flutter_scene, on the other hand, is more heavyweight. Although it can also be implemented as a Widget, bdero/flutter_scene can conversely embed Flutter Widgets directly into a game, seamlessly:
